Current System Structure

Initial System Structure captures the original design. This page is its companion: the same three mandatory UML diagram types (the engineering-artefacts requirement requires them to "reflect the actual implementation"), redrawn against the system as it's actually built today, verified directly against the code rather than transcribed from the original plan. The initial diagrams are kept as-is — they document the original design intent, which is worth preserving — this page documents the delta and the current state alongside them.

Current Object Model

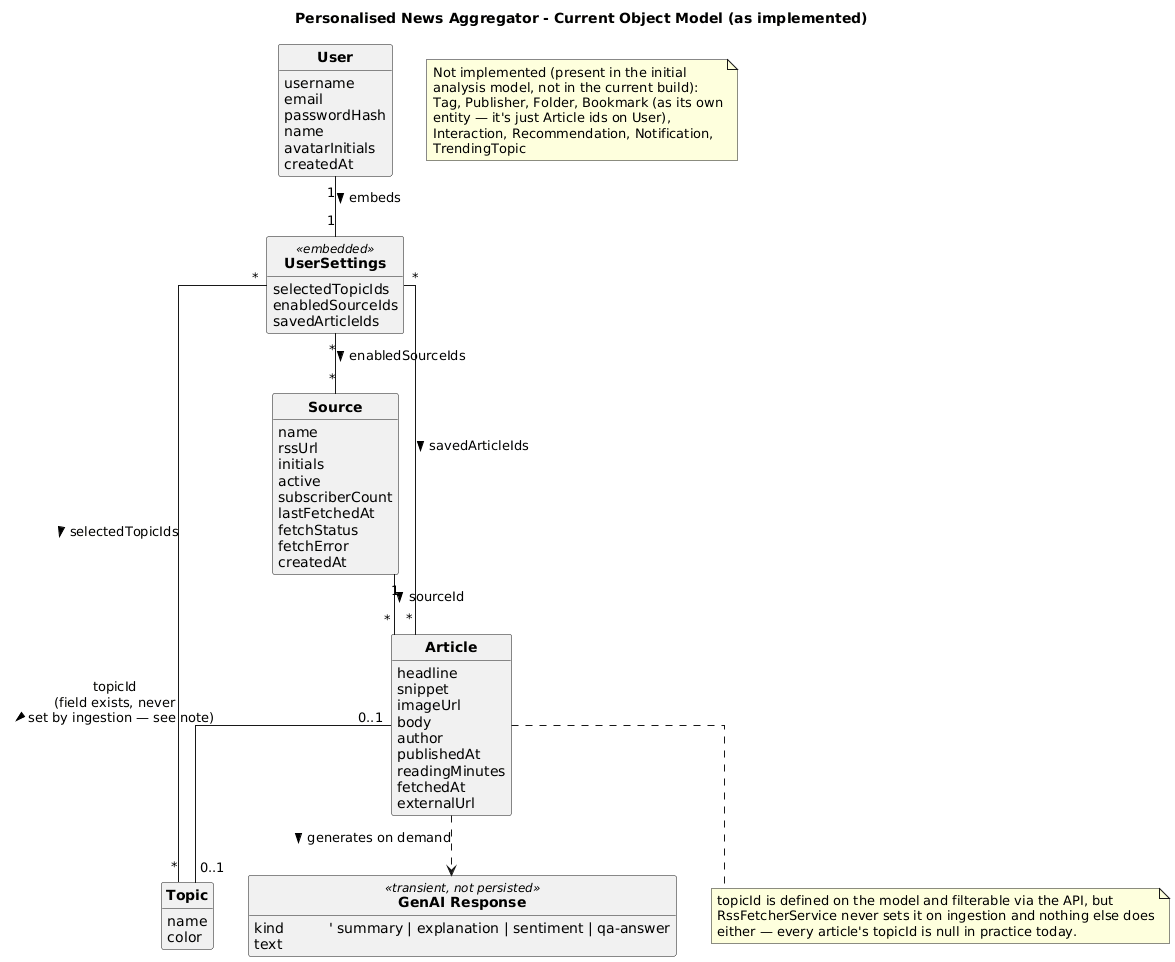

The five collections that actually exist (User, embedded UserSettings, Topic, Source, Article — see Database Schema for the full field/index reference) plus the relationships between them as implemented. GenAI outputs (summary/explanation/sentiment/Q&A) are computed on request and never persisted, unlike the initial model's Summary/Explanation/ SentimentAnalysis entities. Tag, Publisher, Folder, Bookmark (as its own entity), Interaction, Recommendation, Notification, and TrendingTopic from the initial model don't exist in the current build. Source: current-object-model.puml.

Current Use Cases

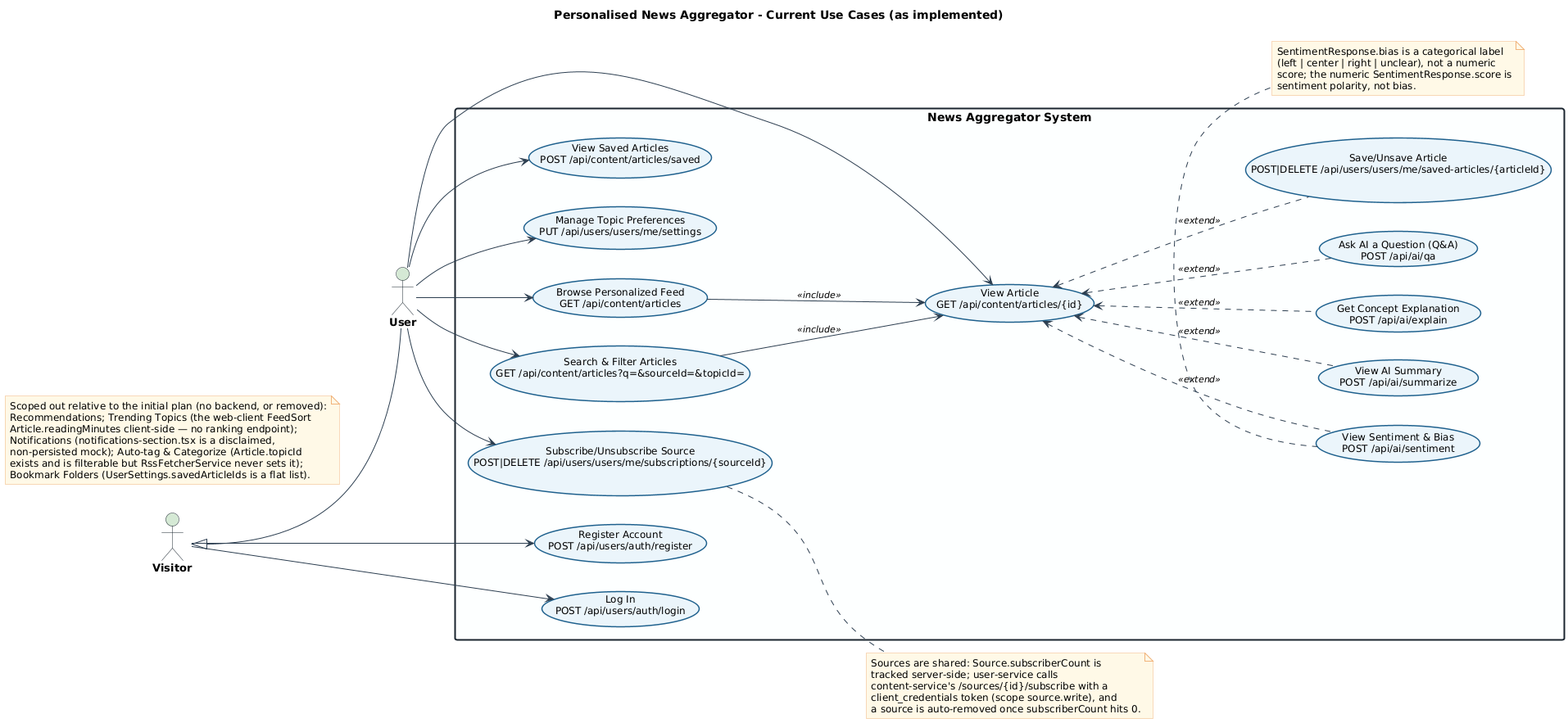

Covers what's actually reachable end-to-end today: register/login, browse the feed, view an article with all four real GenAI extensions (summary, explanation, sentiment — a categorical left/center/right/unclear bias label, not a numeric score — and the Q&A endpoint, which wasn't in the initial use case set at all), search & filter, save/view bookmarked articles (a flat list, no folders), and manage topic/source preferences. Recommendations, trending topics (only a client-side re-sort of already-fetched articles, not a real ranking), notifications (a frontend-only mock, explicitly disclaimed in the UI as not yet wired to a backend), and automatic article tagging (the topicId field exists and is filterable, but nothing ever sets it during ingestion) were all in the initial use case set and are not implemented. Source: current-use-case.puml.

Current Component Diagram

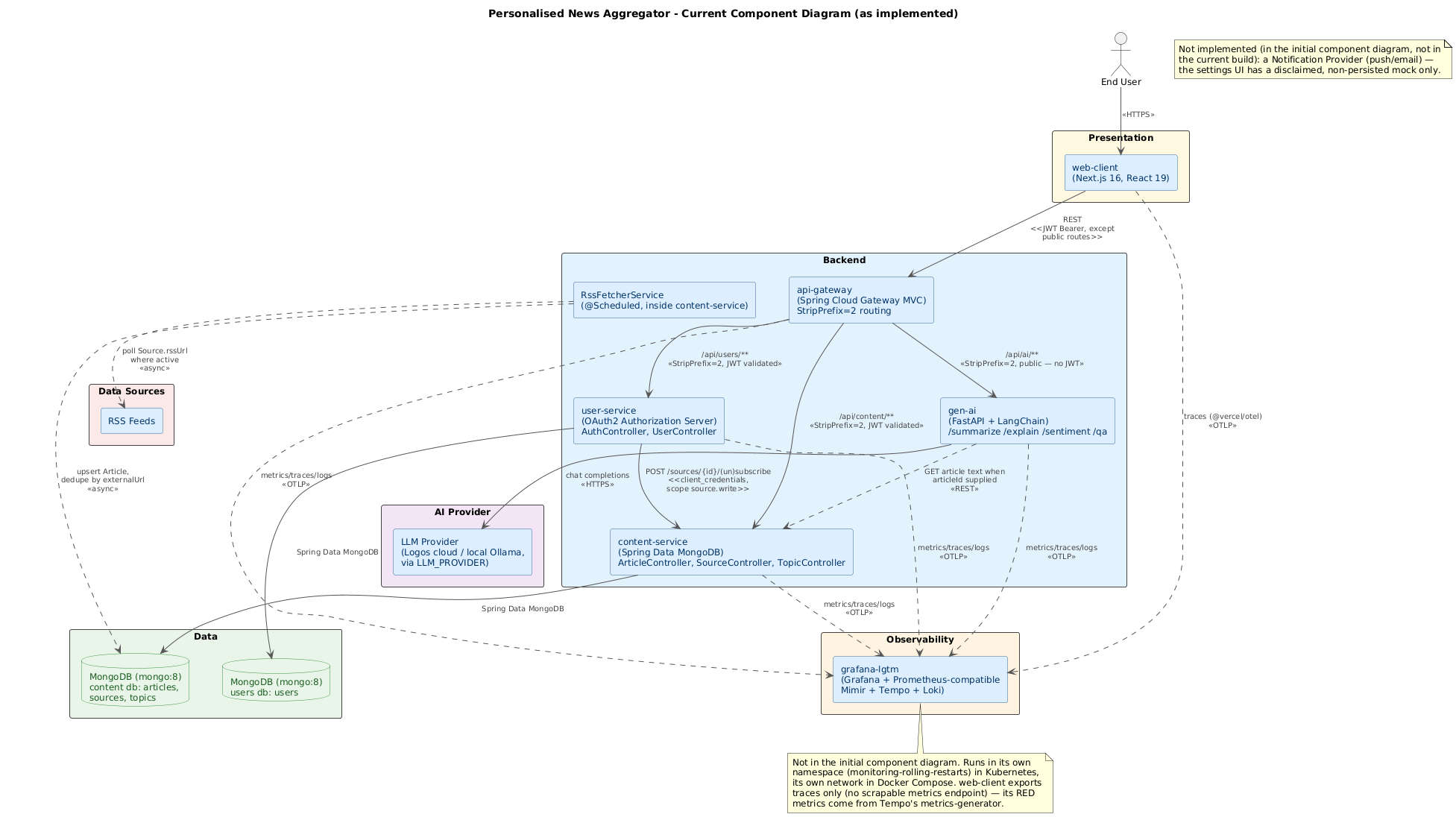

The initial diagram planned a single monolithic "API Service"; the actual system is three separate Spring Boot services (API Gateway, User Service as the OAuth2 Authorization Server, Content Service) plus the GenAI service, each independently deployed, talking to two MongoDB databases (not PostgreSQL) rather than one. The service-to-service subscribe/unsubscribe call between User Service and Content Service uses a dedicated client_credentials machine token (scope source.write) instead of forwarding the end user's JWT. The bundled grafana-lgtm observability stack (metrics, traces, logs from all four services via OpenTelemetry) is new relative to the initial plan; the initial plan's notification provider was never built. Source: current-architecture-component-diagram.puml.
